3105 H19 H24 color coated shutter aluminum strip

 News     |      2022-04-29 15:53
First of all, blinds are very common to us at present, and we can see them everywhere in our life, even a kind of material and use that can be seen everywhere. In fact, his main raw material has already been replaced from the current iron shutters to the color-coated aluminum coils for shutters. The advantages are self-evident, the density is small, and the use is more suitable. 3105 H19 H24 color-coated aluminum strip for shutters belongs to the 3 series aluminum-manganese anti-rust alloy, which can improve the strength by cold working. Besides, due to the addition of manganese, the strength between the welding seams of the aluminum strip for shutters is improved, and the tendency of cracking is greatly reduced, and the performance Good weldability.

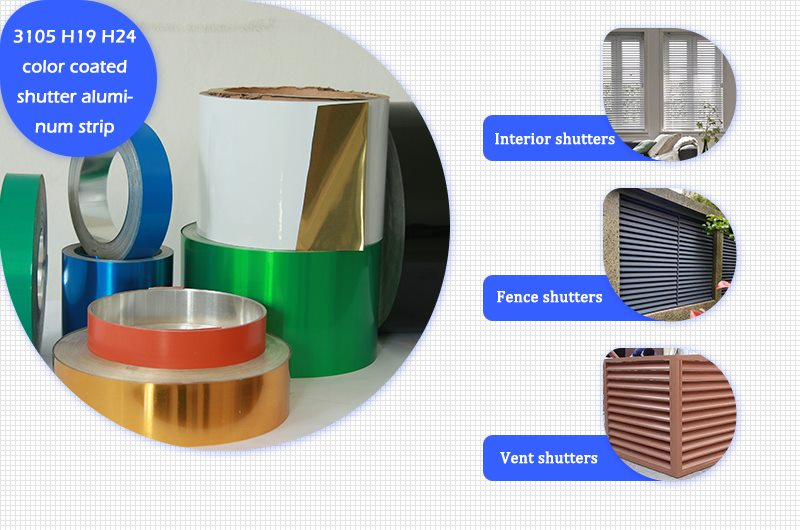

3105 coated aluminum strip
Henan Chalco produces 3105 H19 aluminum strip for color-coated shutters strip
Coating: Fluorocarbon, Polyester
Aluminum plate thickness: 0.2mm-0.8mm
Processing width: coated aluminum coil 20mm-1500mm; coated aluminum sheet 800-1750mm
Core diameter: 150mm, 405mm, 505mm, 508mm, 510mm
Coating thickness: PVDF (fluorocarbon) >=25micron POLYESTER (polyester)>=18micron
Gloss: 10-90%; Coating Hardness: Greater than 2H; Adhesion: Not inferior to Grade 1
Impact resistance: 50kg/cm, no paint peeling and no cracks, polyester color for 10 years, fluorocarbon for 15 years without discoloration and paint.
We can color according to RAL and Pantone international color cards or customer samples.
By Brand: AIYIA
Common widths: 1000mm, 1200mm, 1250mm, other special widths can be requested by customers;
Commonly used alloys: 1100, 3003, 3004, 8011, 3105, 5052, other alloys can be requested by customers
